| Model | P-Sh-N-Ex |
|---|---|
| Working distance | 200 mm |
| Housing material | Aluminum / steel |
| Inner bar material | PVC |
| Ionisation point | Special alloy |
| Cable | 5 m (Neoprene) |
| High voltage indication | - |
| Weight | Base 2 kg + 0,8 kg/m |
| Ambient temperature | 0 - 40° |
| Use circumstances | Industrial |
| Operating voltage | - |
| U primary | 230 V, 50 Hz |
| Power consumption | 30 Watt |
| Options | Neon lamp, external |
| Suitable power unit | Integrated |
| Approval | UL, ATEX |
| ATEX category | II 2 GD |
| ATEX certificate | BAS00ATEX2162X |

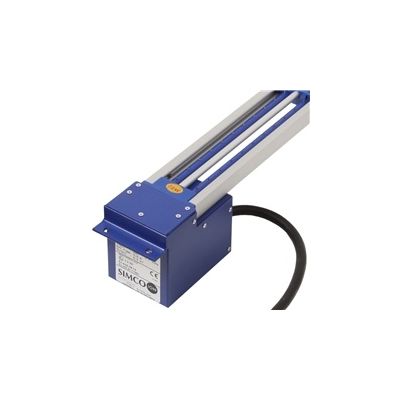

This anti-static bar has the same properties as the P-Sh-N. but is equipped with an integrated power unit, you do not need a high-voltage cable. This anti-static bar has been approved for use in certain hazardous environments. The 5m long primary cable shall be connected to the mains voltage. A neon lamp can indicate that high voltage is present. Under certain conditions the P-Sh-N-Ex bar is capable of neutralizing the materials from a maximum distance of 200 mm.
