| Model | MEJ |
|---|---|
| Working distance | 30 mm |
| Housing material | Anodised aluminum |
| Inner bar matarial | PVC |
| Ionisation point | Special alloy |
| Cable | Metal shielded |
| Weight | 0,56 kg/m |
| Ambient temperature | 0 - 55° |
| Use circumstances | Industrial |
| Operating voltage | 7 kV AC |
| Suitable power unit | A2A7S/MPM |
| Options | right angle cable exit |
| Approval | - |

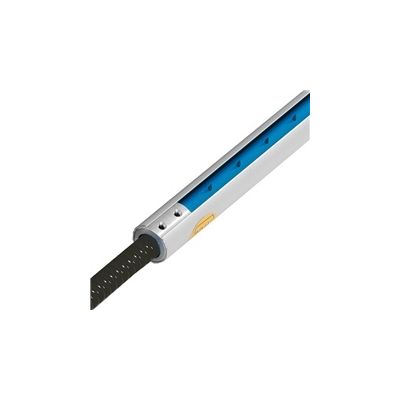

MEJ anti-static bars are often used on production machines were short range ionisation is possible and
where no moving machine parts are interfering the ionisation.The properties of this SIMCO antistatic bar are the same as those of type MEB, except that the MEJ type is round. Therefore mounting this antistatic bar via holes in the machine frame is possible.
