| Model | 1/2" SS |
|---|---|
| Working distance | 30 mm |
| Housing material | Anodised aluminum |
| Inner bar material | PTFE |
| Ionisation point | Special alloy |
| Cable | High voltage cable |
| Weight | 0,56 kg/m |
| Ambient temperature | 150° with special cable |
| Use circumstances | Industrial |
| Operating voltage | 4 kV AC |
| Suitable power unit | A2A4S/MPM |
| Options | Right angle cable exit |
| Approval | UL |

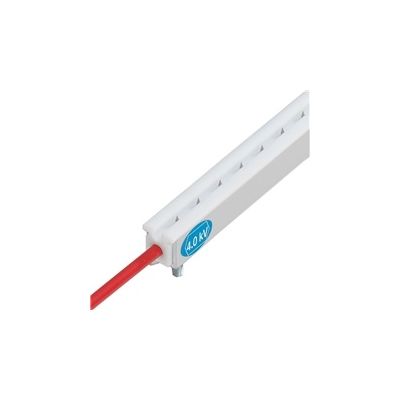

The emitter pins of the Super Service anti-static bars are directly coupled to the high voltage so that maximum ionising current is reached.
These bars can be cleaned easily and therefore they are suited for being installed in places which may be subject to heavy fouling. Touching an emitter pin will cause an unpleasant electrical shock.
These bars are usually installed in such a manner that the emitter pins cannot be touched by personnel.
