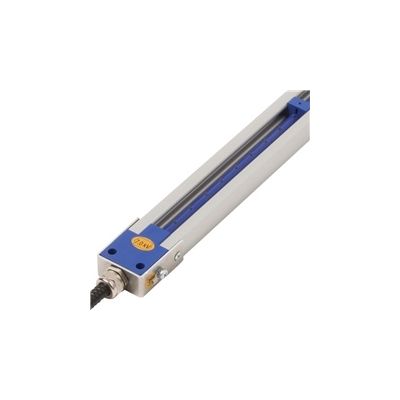

EP-Sh-N: Anti-static Bar

Technical data

Model EP-Sh-N
Working distance 150 mm
Housing material Anodised aluminum
Inner bar matarial PVC
Ionisation point Special alloy
Cable Metal shielded
High voltage indication -
Weight 0,5 kg/m
Ambient temperature 0 - 55°
Use circumstances Industrial
Operating voltage 7 kV AC
U primary -
Power consumption -
Options Right angle cable exit
Suitable power unit A2A7S/MPM
Approval UL
ATEX category -
ATEX certificate -

Each individual emitter pin of this anti-static bar is coupled capacitively to the
high voltage. You will therefore not get an electrical shock when the emitter pin is accidentally touched. Another advantage is that the bar continues to function properly when a number of emitter pins are short-circuited, for instance due to heavy fouling. Under certain conditions the EP-Sh-N bar is capable of neutralizing the electrostatically charged material from a maximum distance of 150 mm.
