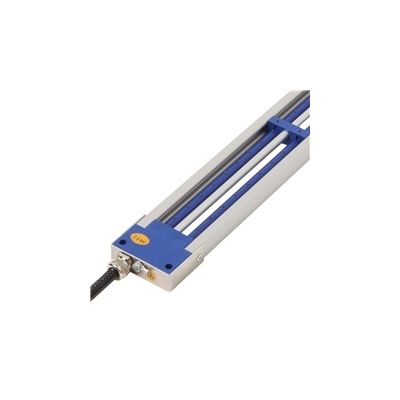

P-Sh-N: Anti-static Bar

Technical data

Model P-Sh-N
Working distance 600 mm
Housing material Anodised aluminum
Inner bar matarial PVC
Ionisation point Special alloy
Cable Metal shielded
High voltage indication -
Weight 1kg/m
Ambient temperature 0 - 55°
Use circumstances Industrial
Operating voltage 7 kV AC
U primary -
Power consumption -
Options Right angle cable exit
Suitable power unit A2A7S/MPM
Approval UL
ATEX category -
ATEX certificate -

This type of anti-static bar, a more powerful version of the EP-Sh-N is highly effective and, with its long range, ideal for neutralization of static electricity on materials when the distance varies. Under certain conditions the maximum distance may even be as large as 600 mm. The construction of the bar is so rigid that bending of long bars is only minimal. The optional double cable connection (type P-Sh-N2) enables this bar to be connected to a twophase (type LB) power unit, so that it will eliminate static electricity even on very fast moving webs.
