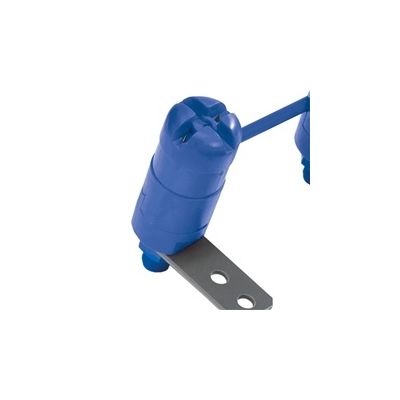

HE: Ionizing nozzle

Technical data

Model HE
Working distance 250 mm
Housing material plastic
Ionisation point special alloy
Cable PVC and PE
Weight 0,04 kg
Ambient temperature 0 - 55°
Use circumstances industrial
Operating voltage 7 kV AC
Noise level 66 dB using 1 bar (at 1 metre)
Air consumption 3,5 Nm3/h using 1 bar
Max. pressure 7 bar
Airconnection 1/8" BSPT on nozzle
Option multiple nozzles on header
Suitable power unit A2A7S

The high voltage at both emitter points is current limited. Being installed outside the air flow, the high-voltage points are hardly subject to fouling, if at all. The nozzle blowoff force is high at a relatively low air consumption.

Dimension
