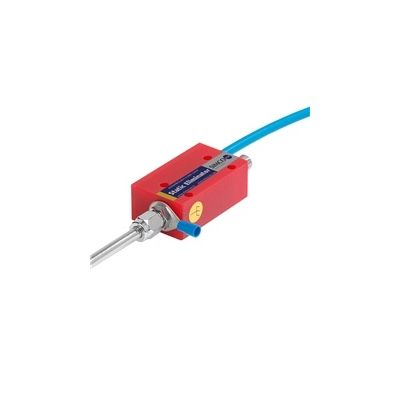

BW: Ionizing nozzle

Technical data

Model BW
Working distance 150 mm
Housing material plastic, stainless steel
Ionisation point special alloy
Cable PVC en PE
Weight 0,06 kg
Ambient temperature 0 - 55°
Use circumstances industrial
Operating voltage 3,3 kV AC
Noise level 58 dB using 1 bar (at 1 metre)
Air consumption with 1/4" tube 4 Nm3/h using 1 bar
Max. pressure 6 bar
Airconnection 1/8" BSPT
Option flexible tube
Suitable power unit A2A3S

This nozzle has been designed especially for neutralising and cleaning (small) bottles on the inside, etc. Ionisation takes place at the end of the tube from which the air is blown. The high-voltage point is not shockless. The tubes are available in two diameters and in a required length. A flexible version of the tube is also possible (type BFW)
