| Model | HP-N-Ex |
|---|---|
| Working distance | 1500 mm max. |
| Working width | 500 mm |
| Housing material | Aluminum / steel |
| Inner bar material | PVC |
| Emitter pins | Special alloy |
| Cable bar | 5 m (Neoprene) |
| Cable motor | 5 m (Neoprene) |
| Weight | 13 kg |
| Ambient temperature | 0 - 40° |
| Use circumstances | Industrial |
| Noise level | 60 dB (A) (at 1 metre) |
| Airvolume 50 Hz | - |
| U primary | 230/400 V AC, 50 Hz, 3 phase |
| Power consumption | 120 Watt |
| Fan speed control | - |
| Option | Neon lamp, external |
| Suitable power unit | Integrated |
| Approval | ATEX |
| ATEX category | II 2G Ex smb IIB T4 (bar) |
| ATEX certificate | BAS00ATEX2162X |

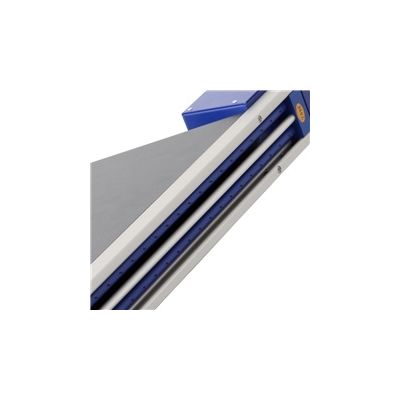

The HP-N-Ex ionizing air blower consists of a motor and a fan. The ambient air is drawn on one side and blown off along an anti-static bar. The effective ionizing width is 500 mm. This ionisation blower has been approved for use in certain explosion-hazardous environments. The power unit is integrated in the anti-static bar.
