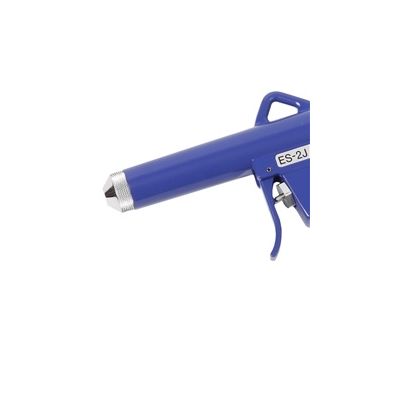

ES-2J: Ionizing air gun

Technical data

Model ES-2J
Working distance 300 mm max.
Housing material Aluminium
Ionisation point special alloy
Cable Metal shielded 3, 6 or 9 metres
Weight 1 kg incl. 3 metres cable
Ambient temperature 0 - 60°
Use circumstances Industrial
Operating voltage 7 kV AC
Noise level 78 dB using 2 bar at 0,6 m
Air consumption 275 l/min. using 2 bar
Max. pressure 7 bar
Airconnection 1/4" BSP with 8 mm hose connection
Suitable power unit A2A7S/MPM
Airfilter -

This gun is electrically safe and shockless. The emitter point is coupled capacitively to the high voltage. Thanks to its rugged design this gun is ideal for heavy-duty industrial applications. The airflow is controlled by the trigger. It comes standard with 3 metres of metalshielded cable. One or two guns can be connected to one power unit.

Dimension
