| Model | LB2A4S |
|---|---|
| Housing material | aluminum and steel, powdercoating |
| Weight | 2,8 k |
| Connections | 4 |
| On/off switch with lamp | yes |
| High voltage indication | neonlamp |
| Cable | 1,8 m |
| Ambient temperature | 0 - 50° |
| Use circumstances | industrial |
| Protection classification | IP-54 |
| U primairy | 110 V or 230 V * |
| Frequency | 50 or 60 Hz* |
| Power consumption | 50 Watt |
| U secundairy | 7 kV AC * |
| I secundairy | 2,5 mA max. |
| Option | BHR, D |
| Approval | UL |

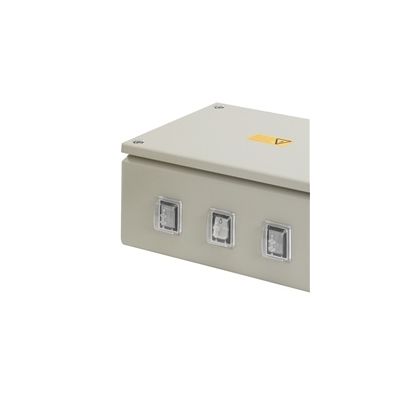

This power unit is equipped with two high-voltage transformers with 180° phase-shifted output voltages. As a result, the anti-static bars connected to the power unit produce positive and negative ions simultaneously. This ensures optimal neutralization of static charges even at very high velocities. This power unit is fitted with two high-voltage indicators and an on/off switch with an indicator lamp.
