| Model | ThunderION |
|---|---|
| Housing material | Aluminium and steel, powdercoating |
| Weight | 3,1 k |
| Connections | four connectors for ThunderION bar, one connector for remote I/O |
| On/off switch with lamp | yes |
| High voltage indication | four LED's |
| Cable | 1,8 m, 3 conductors |
| Ambient temperature | 0 - 50° |
| Use circumstances | industrial |
| Protection classification | IP-54 |
| U primairy | 100 V or 240 Vac * |
| Frequency | 50 or 60 Hz* |
| Power consumption | Max. 100 W |
| U secundairy | 24 Vdc |
| I secundairy | 2,8 A (4 x 0,7A) |
| Option | Remote Control |
| Approval | UL |

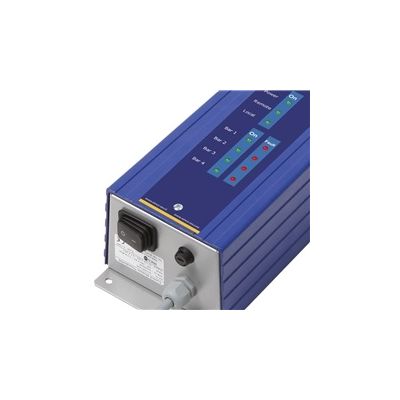

The ThunderION Control Module provides the power and the control for up to four ThunderION anti-static bars. With this Control Module, you can control all connected ThunderION anti-static bars and check they are working correctly from a central location. The Control Module operates on the mains voltage, which can be turned on and off with a switch. A cable with a pre-assembled connector at each end links the ThunderION anti-static bar with the Control Module. This offers quick and easy assembly. All cables carry just 24 V. The Control Module enables you to check the functioning of each connected anti static bar. A green LED indicates that the bar is switched on. A red LED indicates that a fault has been detected. Via the I/O port, you also have the option of switching each bar on/off remotely and separately, as well as checking its correct functioning.
