MPM: Power unit

Technical data

Model MPM
Housing material aluminum and steel, powdercoating
Weight 3 kg
Connections 4
On/off switch with lamp yes without light
High voltage indication LED
Cable 1,8 m
Ambient temperature 0 - 50°
Use circumstances industrial
Protection classification IP-54
U primairy 100 V or 240 V *
Frequency 50 or 60 Hz*
Power consumption 36 Watt
U secundairy 3,3 - 7 kV AC *
I secundairy 3 mA max.
Option B,H,M,O,P and R
Approval UL

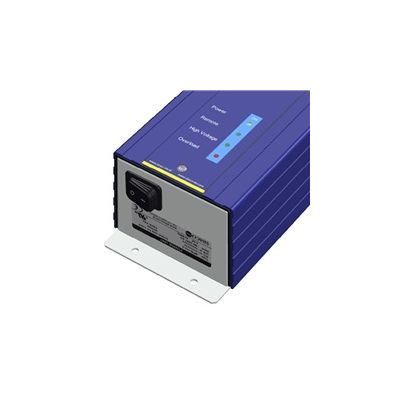

The Multi Power Master (MPM) is an addition to the range of high voltage powers units. It features electronically stabilized output voltage and a wide range of input voltages. Input voltages range from 100-240 V AC, 50-60 Hz. Output voltage is preset at the factory to 3.3 , 4.0 , 5.0, and 7 kV. Green and red LED's are incorporated in the top face of the MPM. Optionally the MPM can be fitted with a I/O connector for interfacing with f.e. a PLC. Optional I/O signals are available for remote on/off, high voltage present and overload. The I/O connector also contains a 24 V power source for use with the Typhoon airpressure sensor.
